Metal Theta Ring (θ Ring Packing) Product Description

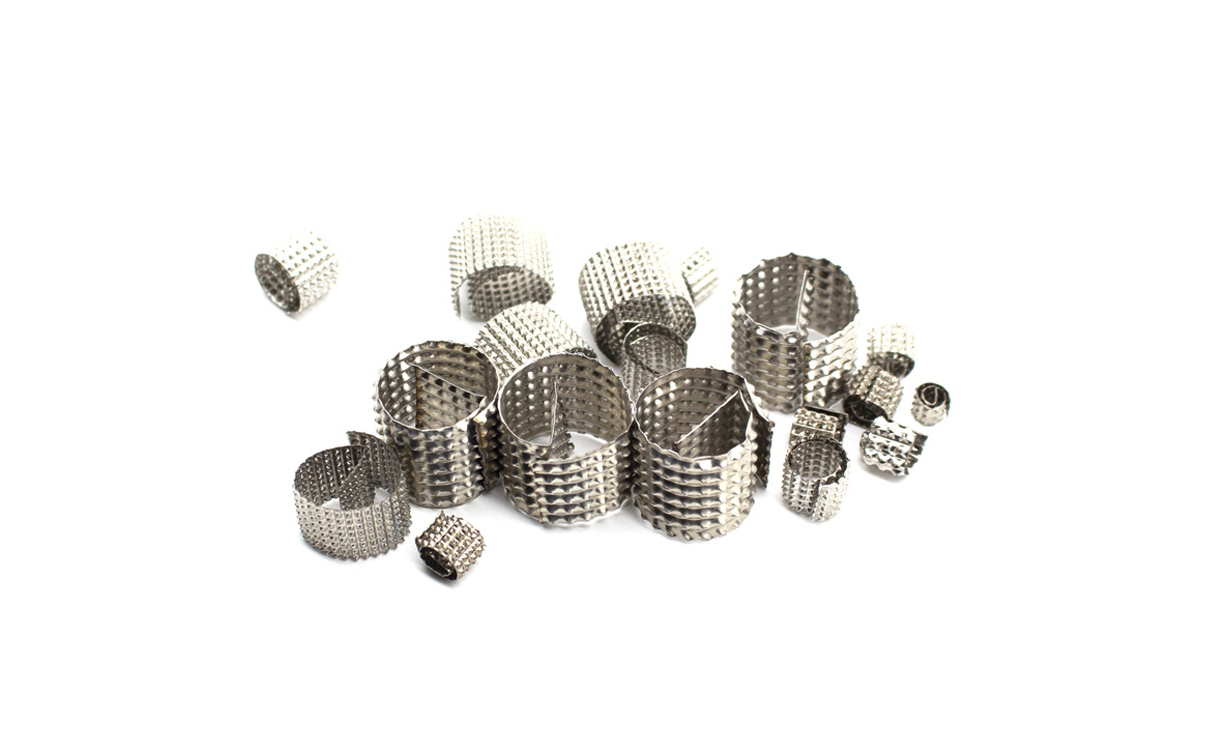

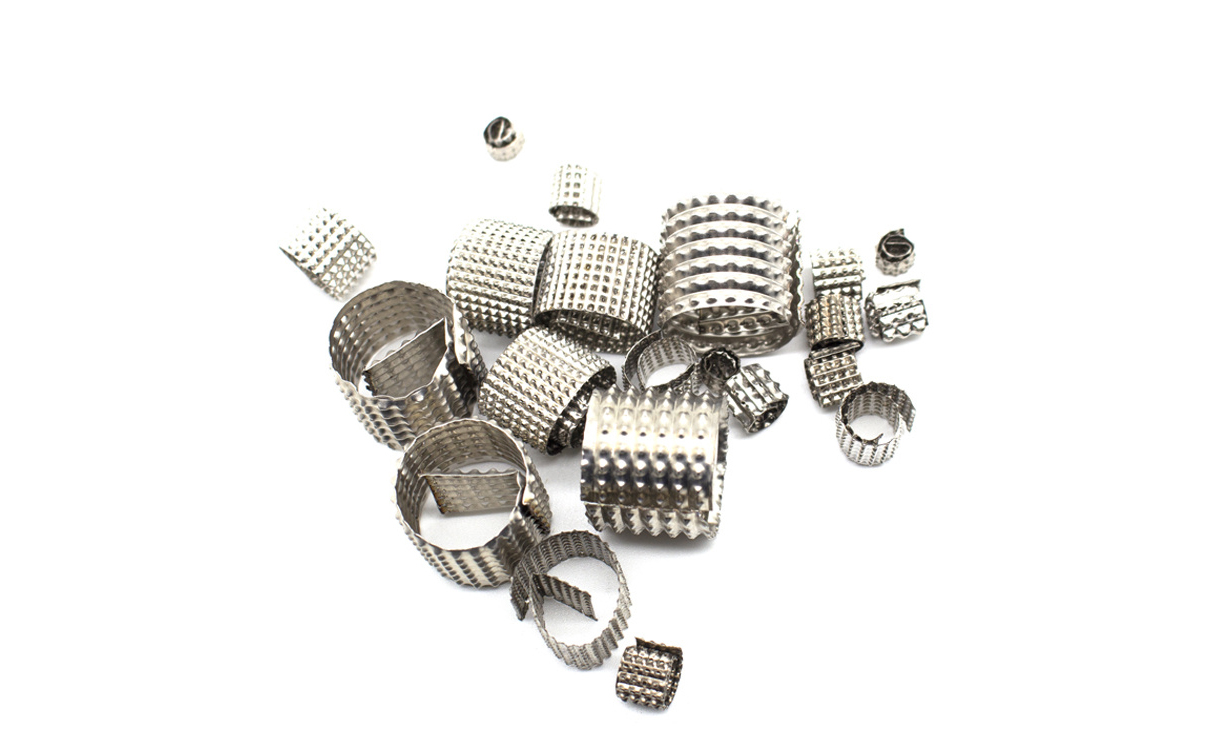

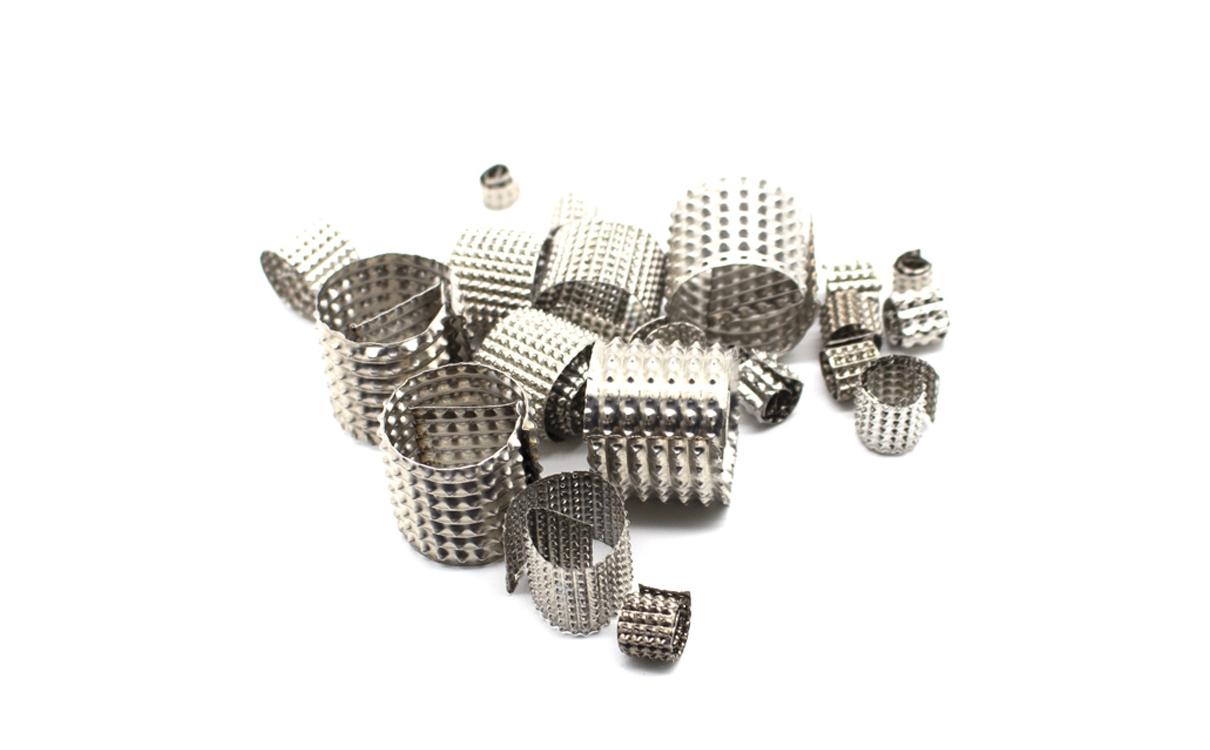

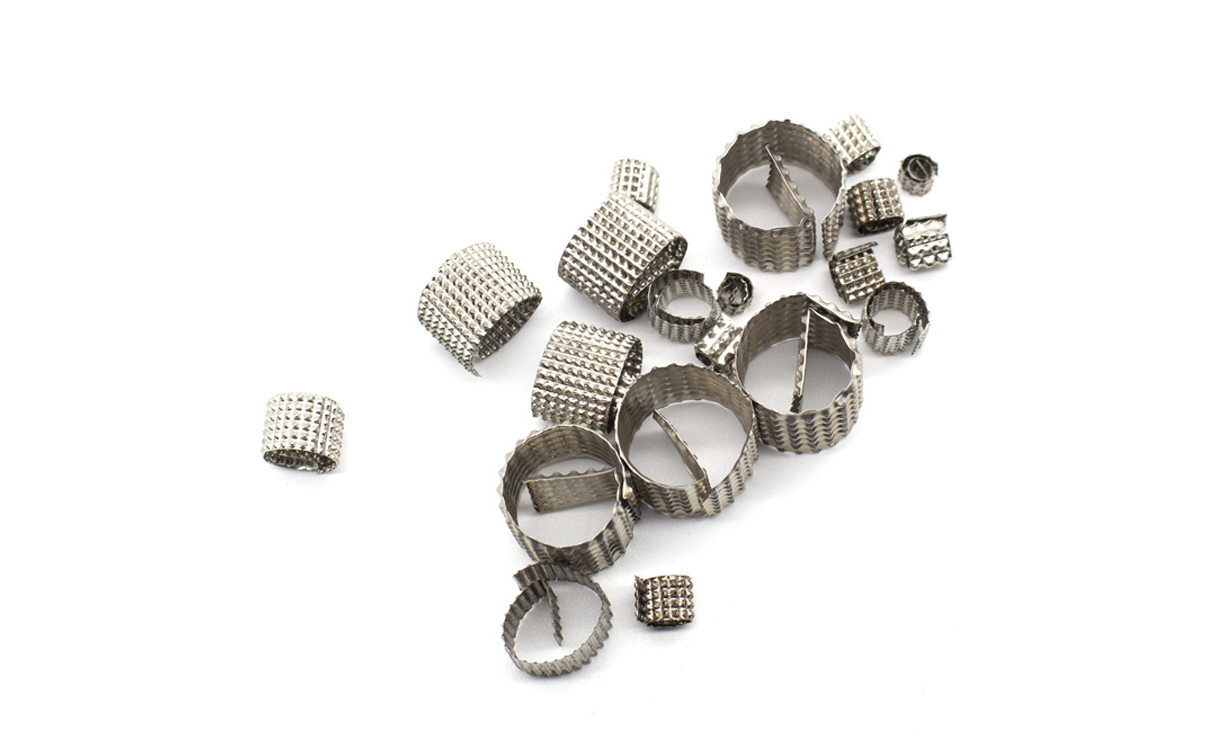

Metal Theta Ring, also widely called Dixon Ring or θ Ring Packing, is a high-performance laboratory random packing originally developed by British scientist O.G.Dixon in 1949. Manufactured from fine wire mesh with precisely controlled pore sizes, it is engineered for maximum separation efficiency in small-diameter distillation columns and high-purity product refinement processes.

-

Product Highlights

• Superior Capillary Action: The fine wire mesh creates a powerful capillary effect, drawing liquid uniformly across the entire packing surface to form a highly stable, thin film. This significantly enhances gas-liquid mass transfer and heat exchange efficiency.
• Exceptional Theoretical Plate Count: High separation efficiency that delivers 50-60 theoretical plates per meter for 2mm rings and 15-20 plates per meter for 5mm rings under normal operating conditions, making it ideal for precision distillation.
• High Liquid Holdup & Wettability: The irregular mesh surface holds more liquid than solid packings of the same size, and surface wetting is significantly better than ceramic rings, resulting in higher film formation rates and efficiency.
• Low Pressure Drop: Designed with an open structure and high void fraction (91-97%), the packing minimizes resistance to gas flow, ensuring smooth operation and reduced energy costs.
• Corrosion & Heat Resistance: Made from 304, 316L, or other stainless steel alloys, it withstands aggressive chemicals and high temperatures for long-term reliable service.
• Versatile Material Options: Available in stainless steel, brass, phosphor bronze, titanium, and dual-phase steel to meet different application requirements.
