High Quality 304 & 316 Stainless Steel IMTP Intalox Saddle Ring 25mm 40mm 50mm Metal Tower Packing

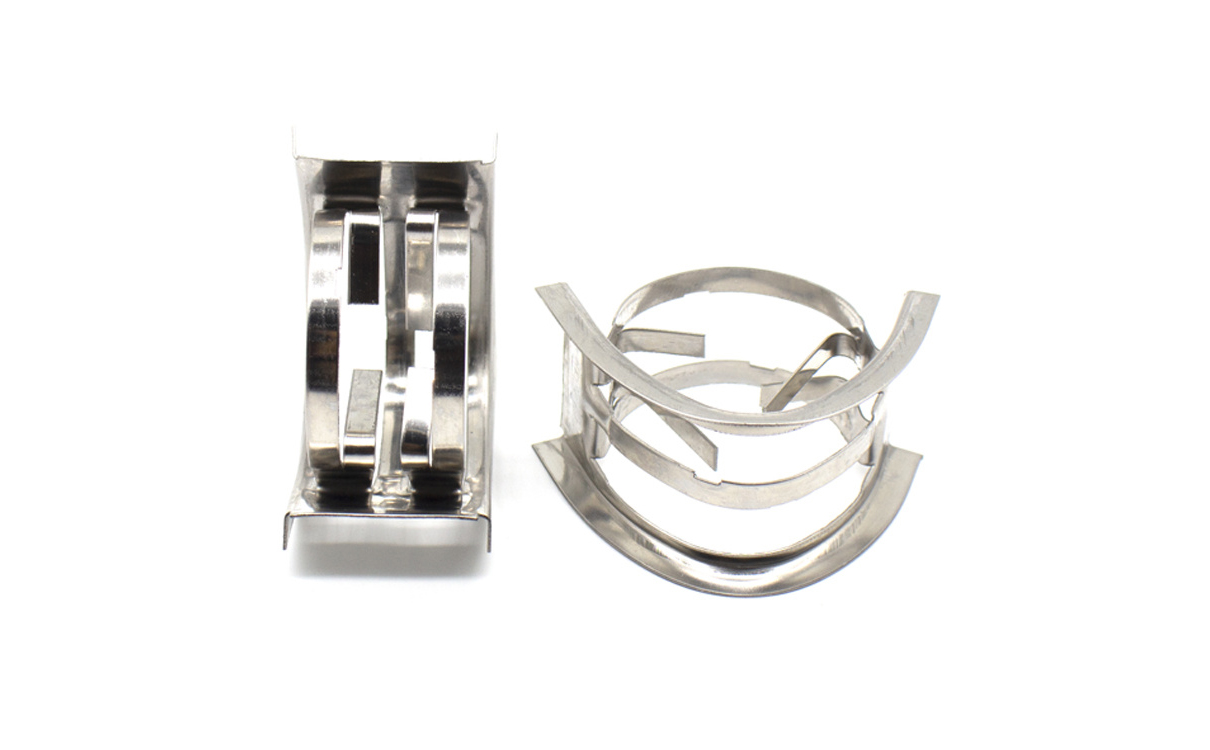

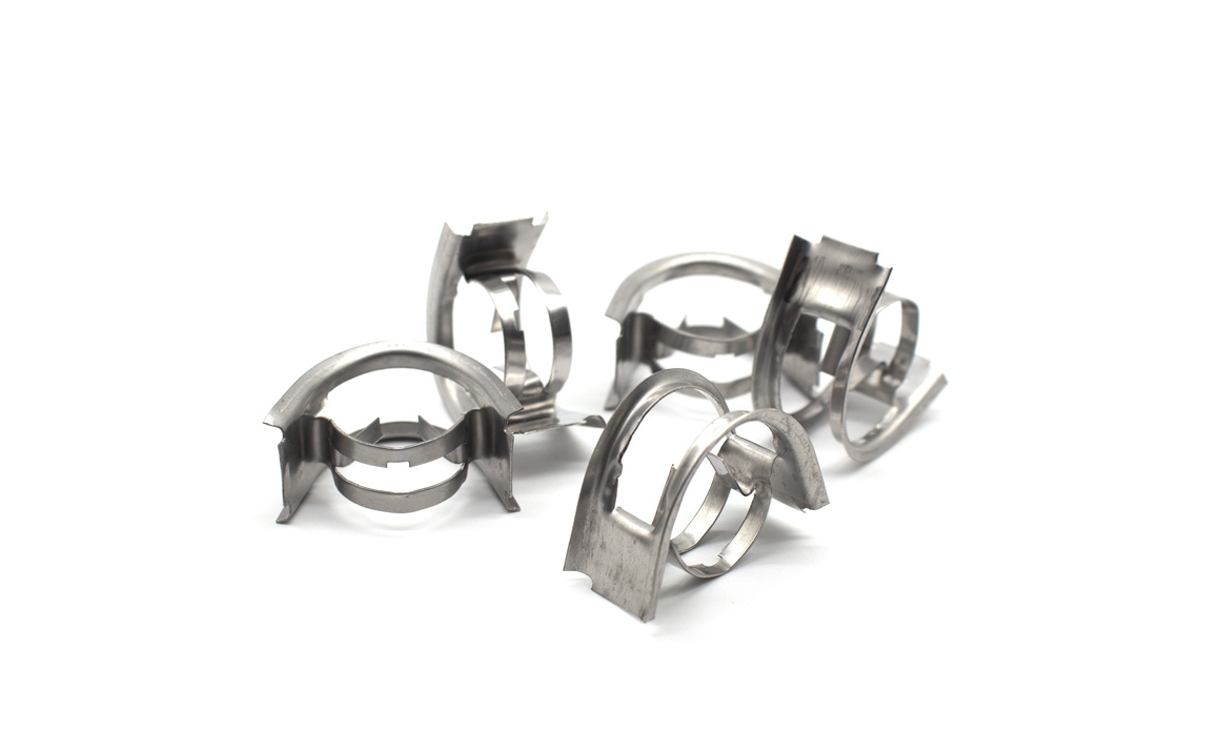

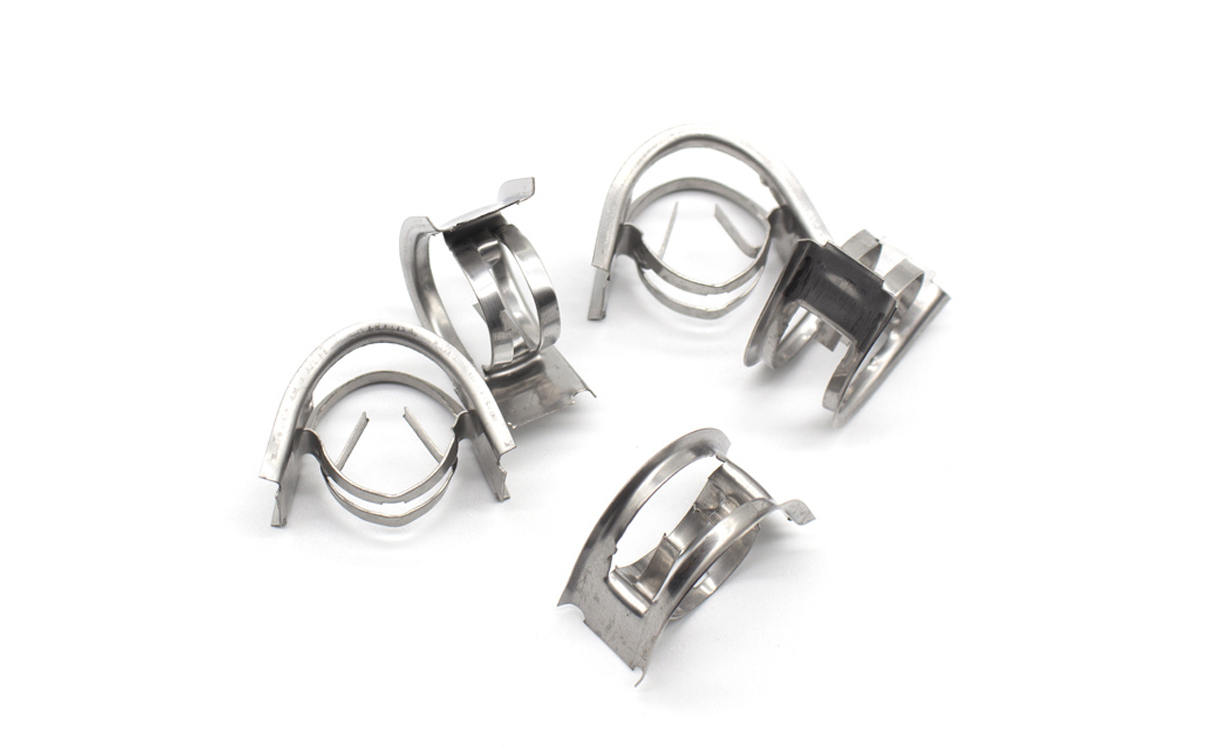

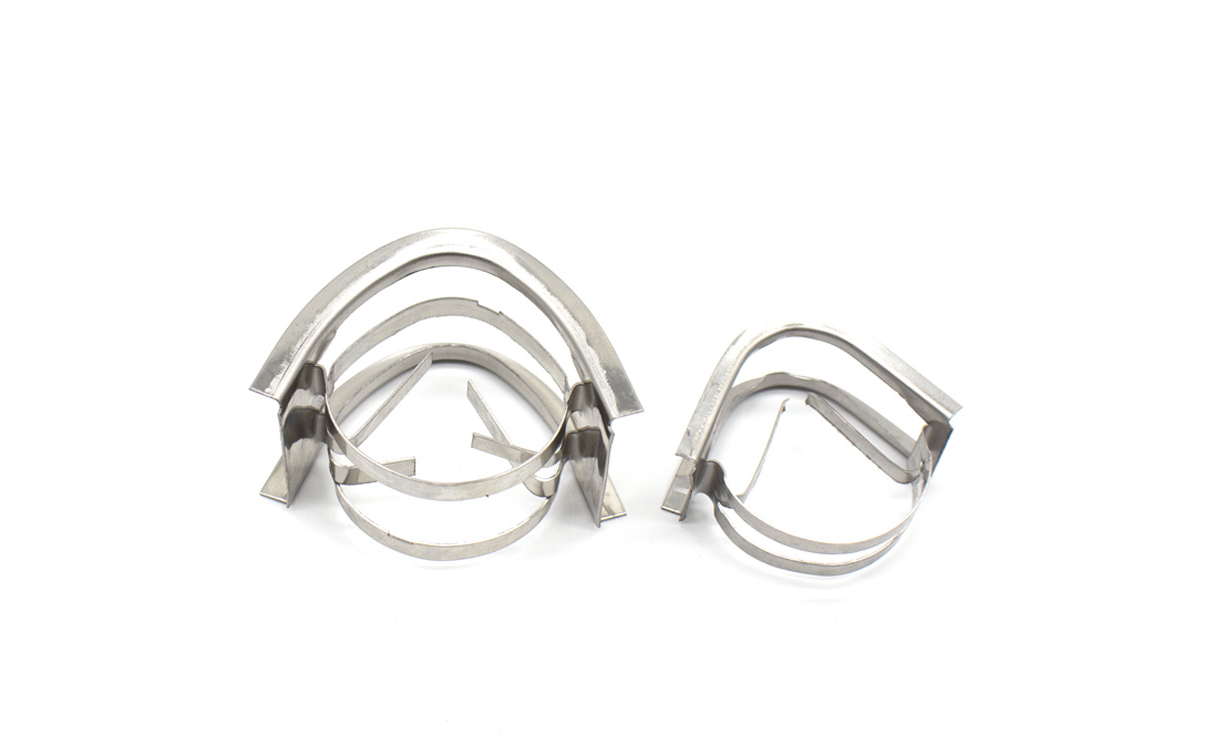

IMTP Intalox Metal Saddle Ring Product Description
IMTP Intalox Metal Saddle Ring is an improved high-efficiency saddle-shaped metal tower packing, specially designed for industrial mass transfer systems.
Its unique asymmetrical saddle structure eliminatesthe directional stacking problem of traditional ring packing, ensuring more uniform gas-liquid distribution inside the tower and effectively avoiding channeling.
Made of high-quality 304 & 316 stainless steel, it offers excellent corrosion resistance, high mechanical strength, and stable long-term performance in harsh chemical environments.
With core advantages of low pressure drop and strong anti-clogging performance, it is ideal for working conditions with high liquid load or easy scaling, widely applied in distillation, absorption, and desulfurization towers.
desulfurization setups, it suits chemical processing, petroleum refining, and environmental protection industries—including the isolation of substances like ethylbenzene and toluene.
| Size (mm) | Bulk density (kg/m³) | Packing Number (pcs/m³) | Surface area (m²/m³) | Free volume (%) | Dry Packing Factor (m⁻¹) |
|---|---|---|---|---|---|
| 15mm (16.5×10.6×0.25) | 223 | 324,110 | 275 | 97.2 | 300.2 |
| 15mm (16.5×10.6×0.3) | 263 | 324,110 | 275 | 96.7 | 304.9 |
| 25mm (25.9×12.6×0.25) | 163 | 127,180 | 415 | 4.8* | 489.2 |
| 25mm (25.9×12.6×0.3) | 192 | 127,180 | 344 | 95.5 | 393.2 |
| 25mm (25.9×12.6×0.4) | 266 | 127,180 | 199 | 96.6 | 221.0 |
| 40mm (35.4×18.8×0.25) | 124 | 51,180 | 151 | 98.4 | 158.3 |
| 40mm (35.4×18.8×0.3) | 146 | 51,180 | 151 | 98.1 | 159.7 |
| 40mm (35.4×18.8×0.4) | 203 | 51,180 | 151 | 97.4 | 163.2 |
| 50mm (48.5×28.6×0.3) | 95 | 15,550 | 97 | 98.8 | 101.0 |
| 50mm (48.5×28.6×0.4) | 132 | 15,550 | 97 | 98.3 | 102.5 |
| 50mm (48.5×28.6×0.5) | 169 | 15,550 | 97 | 97.9 | 103.9 |
| 60mm (67×37×0.4) | 113 | 9,000 | 84 | 98.6 | 87.3 |
| 60mm (67×37×0.5) | 145 | 9,000 | 84 | 98.2 | 88.4 |
| 70mm (76.5×42.5×0.4) | 83 | 4,690 | 61 | 99.0 | 62.9 |
| 70mm (76.5×42.5×0.4) | 106 | 4,690 | 61 | 98.7 | 63.5 |
