Stainless Steel Metal Cascade Mini Ring 25mm 38mm 50mm High Flow Low Pressure Drop Tower Packing for Chemical Distillation

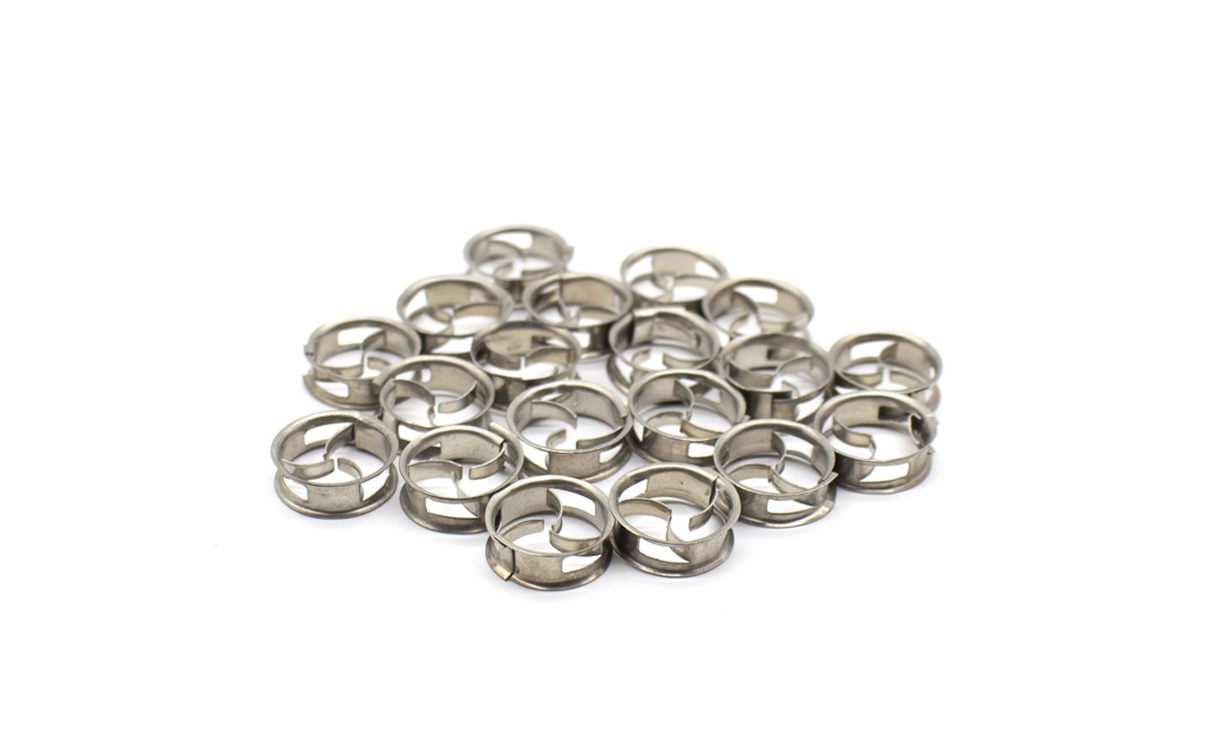

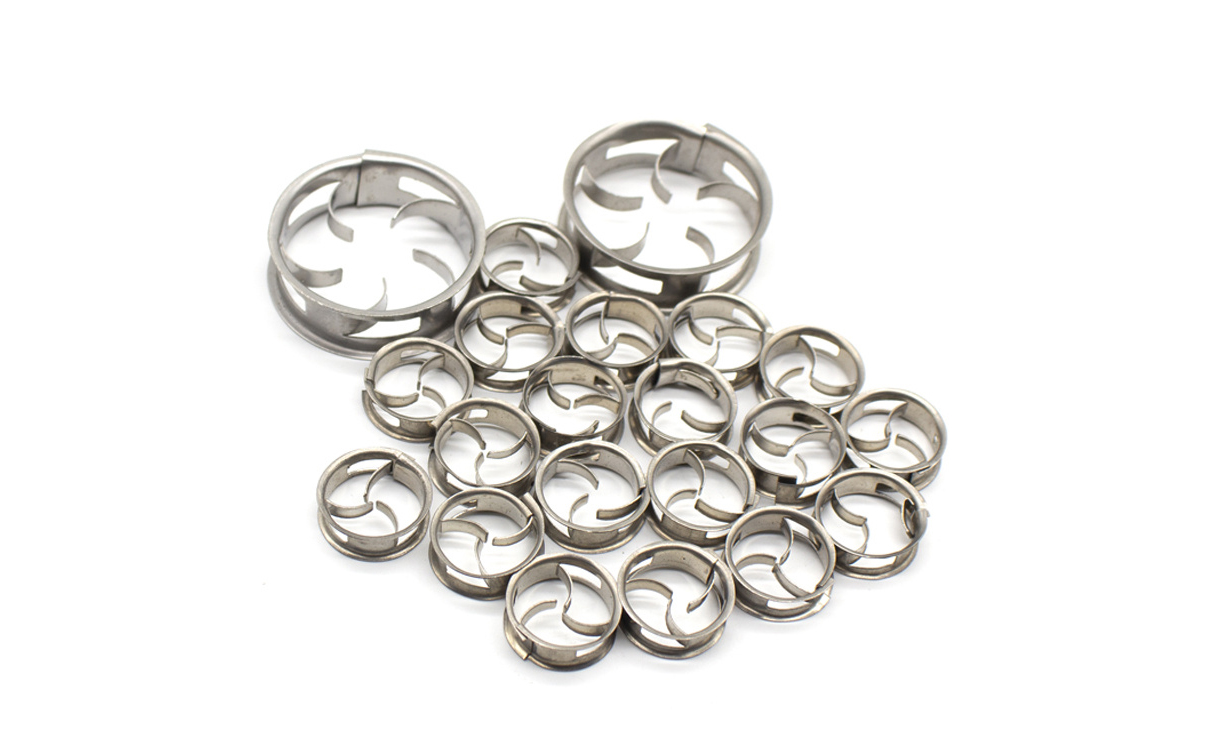

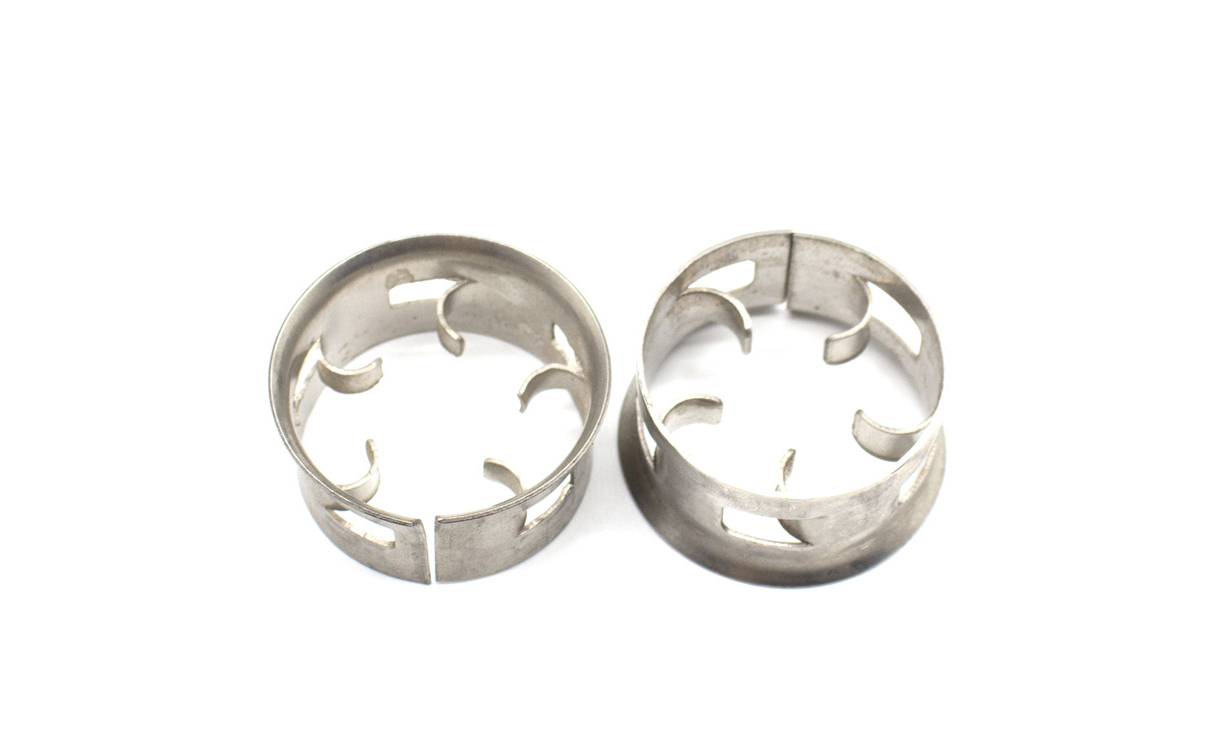

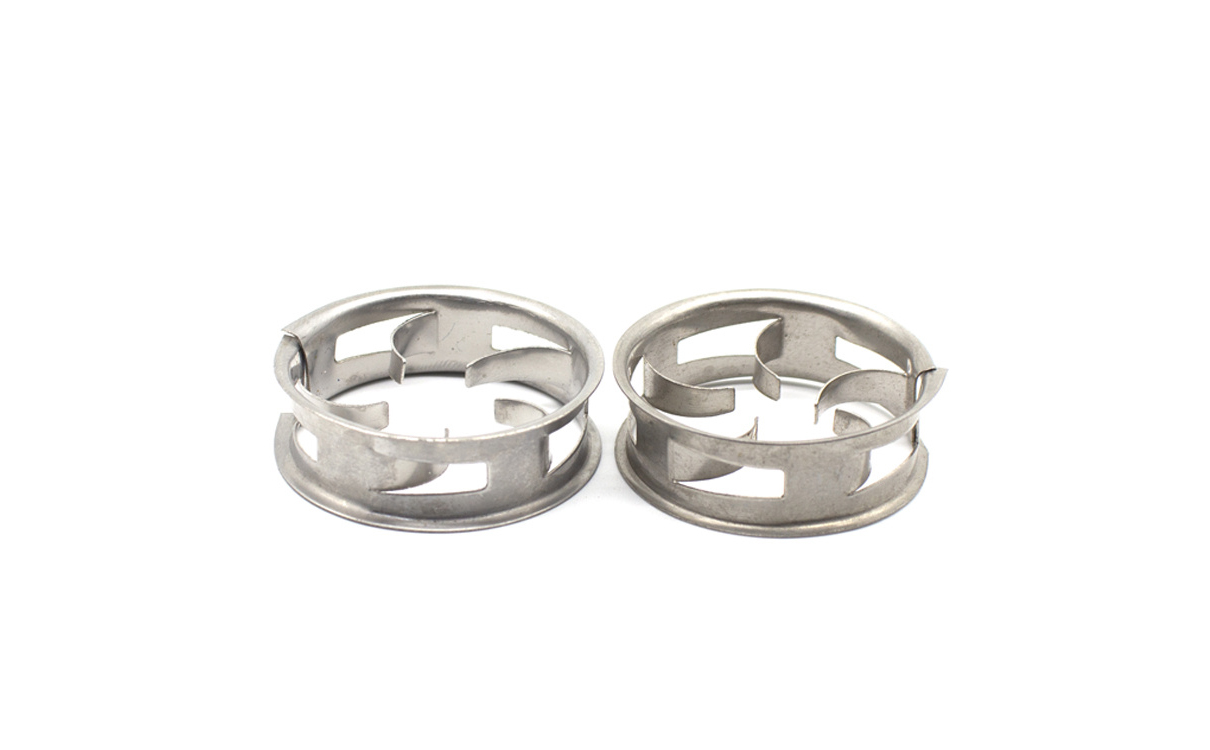

Metal Cascade Mini Ring Product Description
Metal Cascade Mini Ring is a new upgraded high efficiency metal random packing for industrial tower equipment.
Adopts unique asymmetrical stepped structure, which changes the traditional stacking method, keeps uniform gaps inside the tower and effectively avoid material clogging.
With the core advantages of large flux and ultra low pressure drop, it provides better gas-liquid contact and greatly upgrades overall mass transfer efficiency.
Made of high strength carbon steel, 304 and 316L stainless steel materials, it owns outstanding high temperature resistance and structural stability, suitable for long term operation in harsh chemical working environments.
Widely applied in distillation, absorption, desulfurization and purification processes of petrochemical, chemical and environmental protection industries.
| Metal Cascade-Mini Rings with Two Bevel Edges | |||||
|---|---|---|---|---|---|
| Type | Size (mm) | Surface Area (m²/m³) | Void Ratio (%) | Packing Quantity (Pieces/m³) | Dry Packing Factor (m⁻¹) |
| 0P | 17×15×6×0.3 | 427 | 94 | 530,000 | 55 |
| 1P | 25×22×8×0.3 | 230 | 96 | 150,000 | 40 |
| 1.5P | 34×29×11×0.3 | 198 | 97 | 60,910 | 29 |
| 2P | 43×38×14×0.4 | 164 | 97 | 29,520 | 22 |
| 2.5P | 51×44×17×0.4 | 127 | 97 | 17,900 | 17 |
| 3P | 66×57×21×0.4 | 105 | 98 | 8,800 | 14 |
| 4P | 86×76×29×0.4 | 90 | 98 | 5,000 | 10 |
| 5P | 131×118×41×0.6 | 65 | 98 | 1,480 | 7 |
| Metal Cascade-Mini Rings with One Bevel Edge | ||||
|---|---|---|---|---|
| Size (mm) | Surface Area (m²/m³) | Void Ratio (%) | Packing Quantity (Pieces/m³) | Dry Packing Factor (m⁻¹) |
| 25 | 220 | 96.5 | 97,160 | 273.54 |
| 38 | 154.3 | 95.9 | 31,800 | 185.8 |
| 50 | 109.2 | 96.1 | 12,300 | 127.4 |
| 76 | 73.5 | 97.6 | 3,540 | 81 |
