Stainless Steel Metal Conjugate Ring 25mm 38mm 50mm High Efficiency Low Pressure Drop Tower Packing for Chemical Distillation

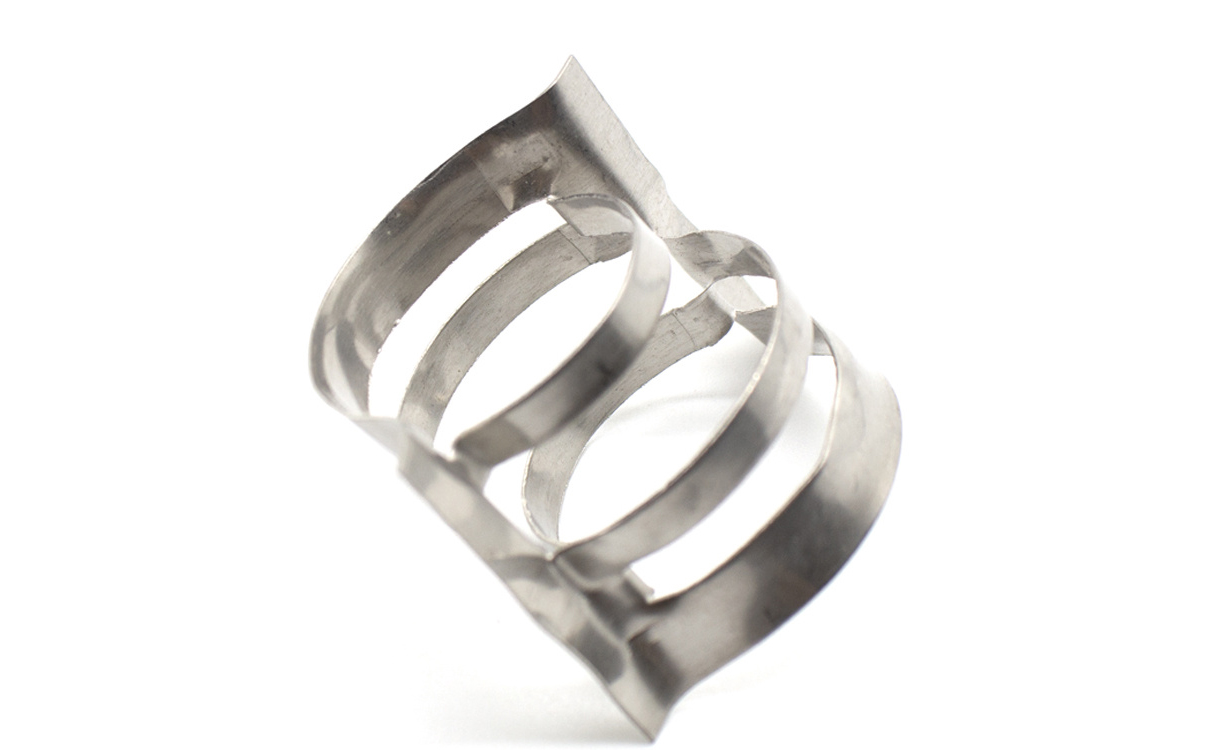

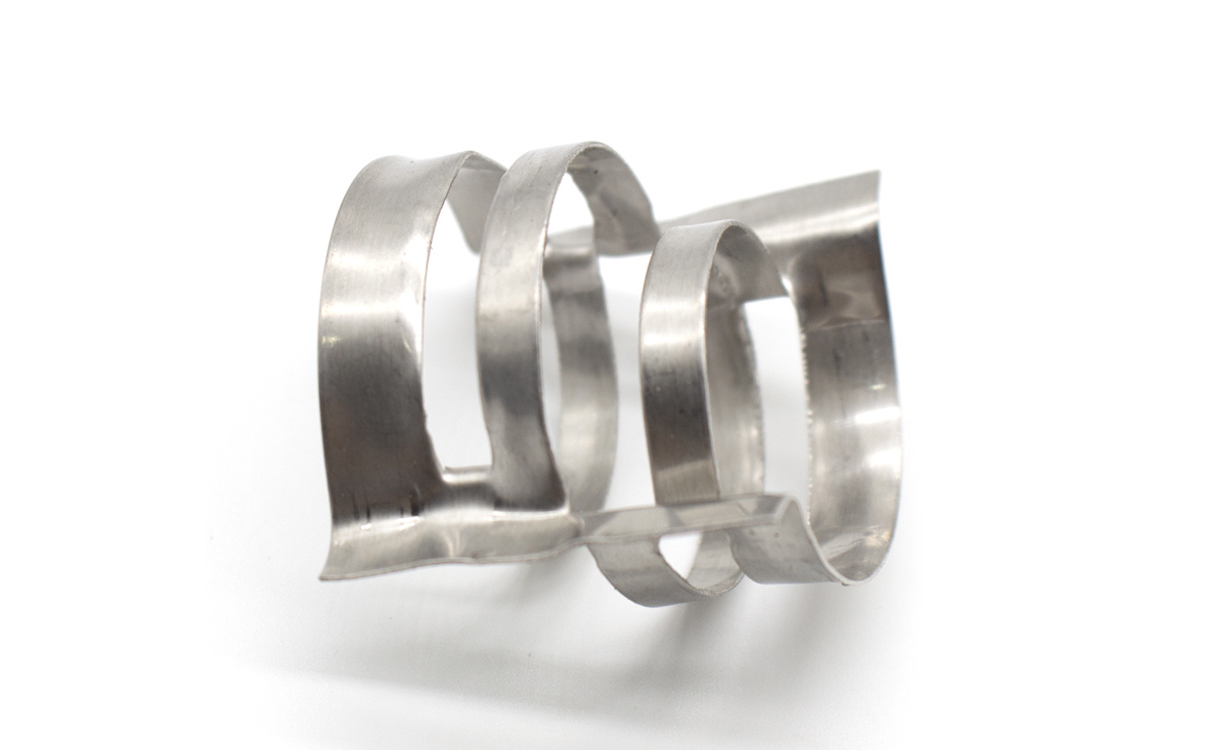

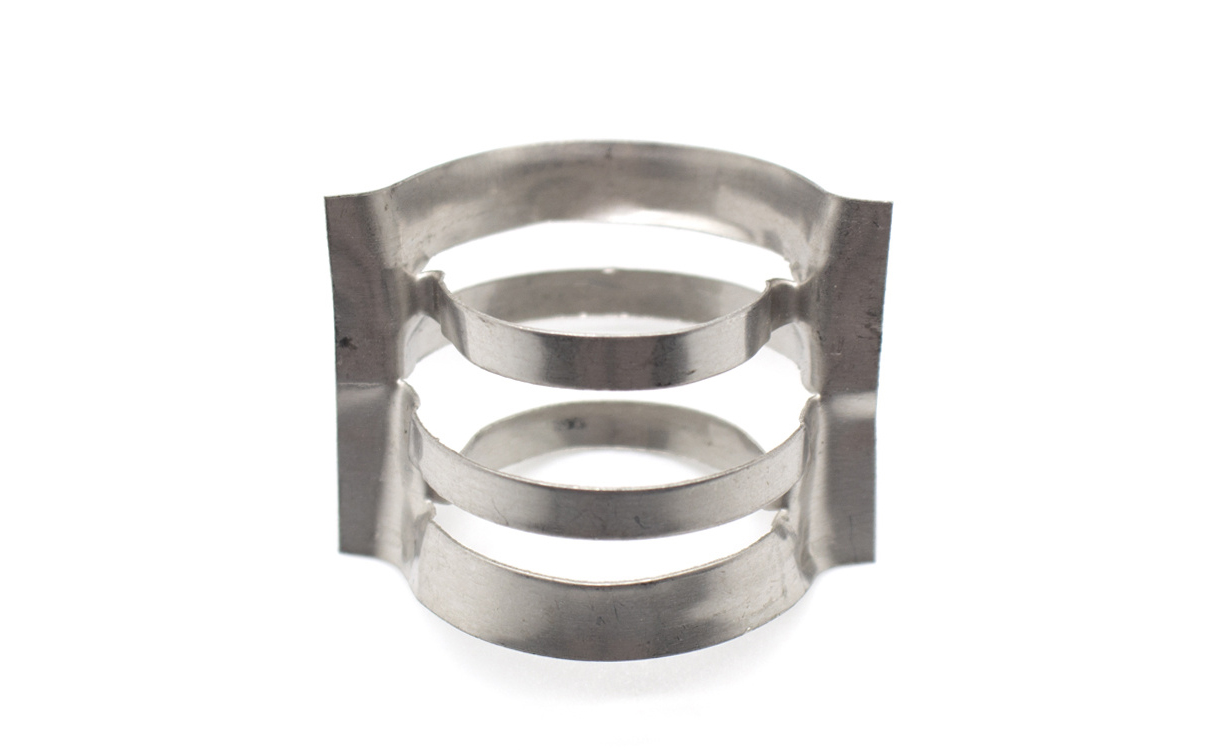

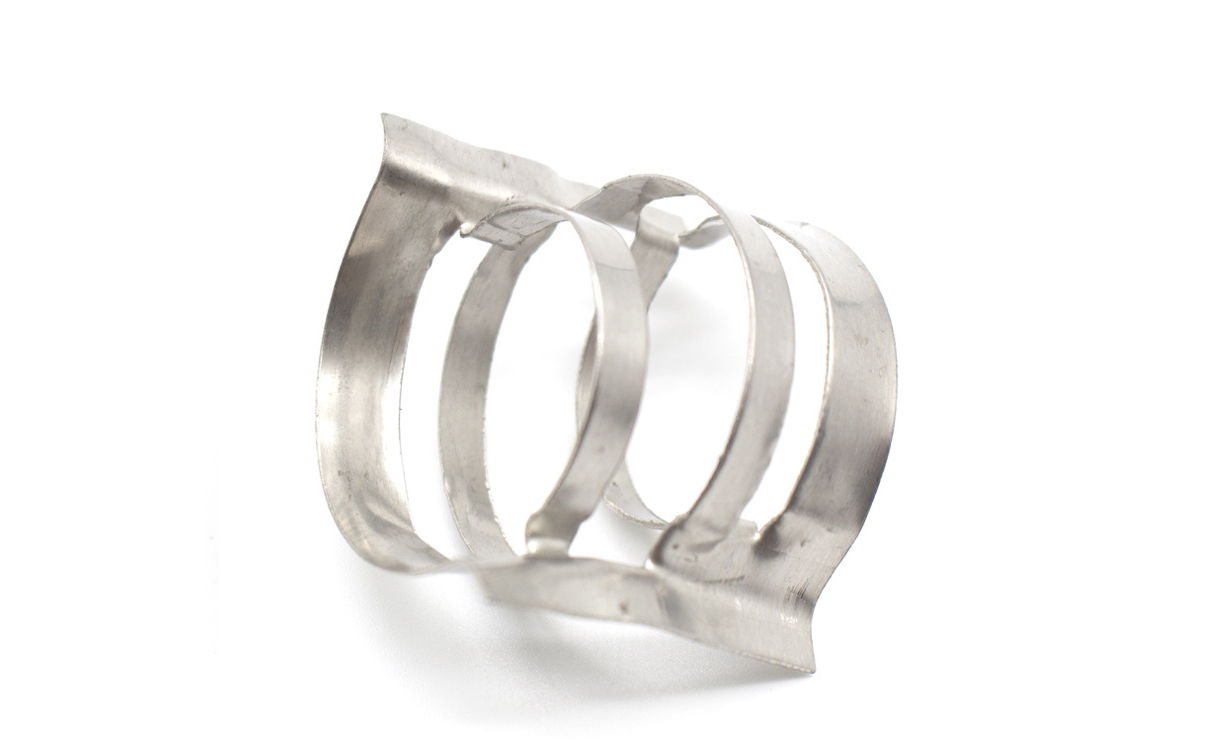

Metal Conjugate Ring Product Description
Metal Conjugate Ring is an upgraded high-efficiency metal random packing developed based on the structural advantages of pall rings and cascade mini rings.
Its unique conjugate blade structure with reversed upper and lower ends optimizes gas-liquid flow paths, eliminates dead zones in the tower, and ensures more uniform distribution of both phases.
Compared with traditional metal packing, it features significantly lower pressure drop and higher mass transfer efficiency, with excellent anti-clogging performance even under high liquid load or scaling-prone working conditions.
Manufactured from high-quality 304, 316L stainless steel and carbon steel, it has outstanding corrosion resistance and mechanical strength, supporting stable long-term operation in harsh chemical environments.
Widely used in chemical distillation towers, absorption towers, petrochemical refining, desulfurization systems and environmental protection tower equipment.
and toluene.
| Size (D×H×T, mm) | Specific Surface (m²/m³) | Void Fraction (%) | Packing Number (Pieces/m³) | Bulk Density (kg/m³) |
|---|---|---|---|---|
| 16×16×0.4 | 313 | 97 | 211,250 | 354 |
| 25×25×0.5 | 185 | 95 | 75,000 | 216 |
| 38×38×0.8 | 116 | 96 | 19,500 | 131 |
| 50×50×0.8 | 86 | 96 | 9,772 | 97 |
| 80×80×0.8 | 81 | 95 | 3,980 | 94.5 |
