Plastic Lanpack Ring Product Description

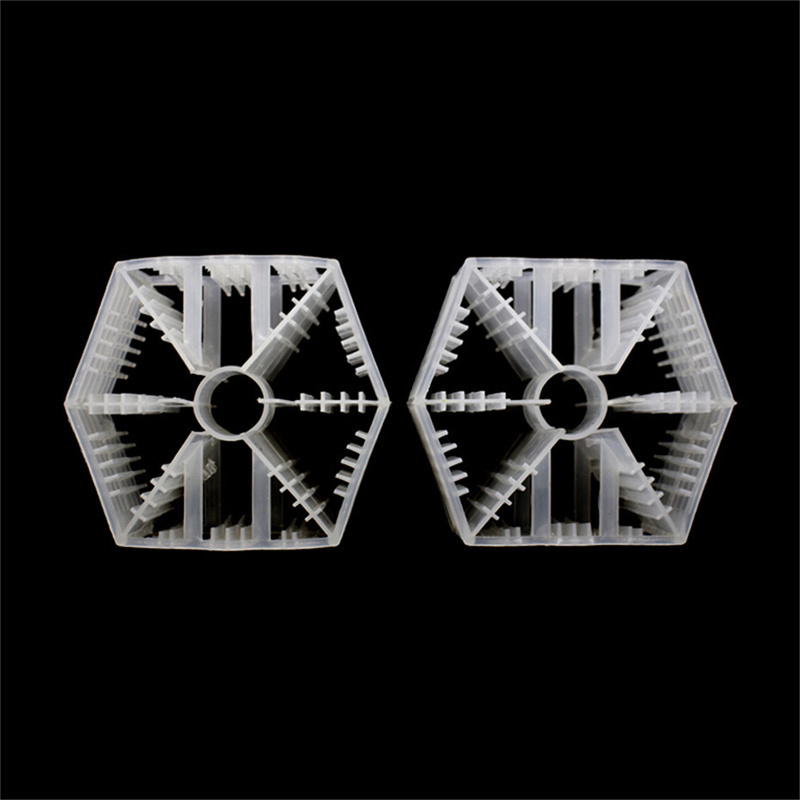

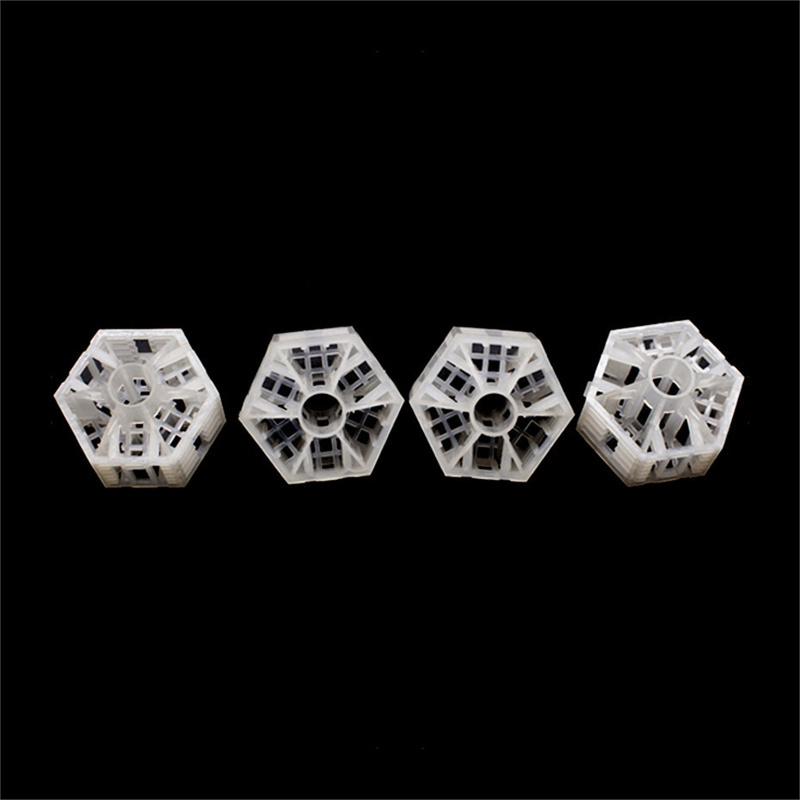

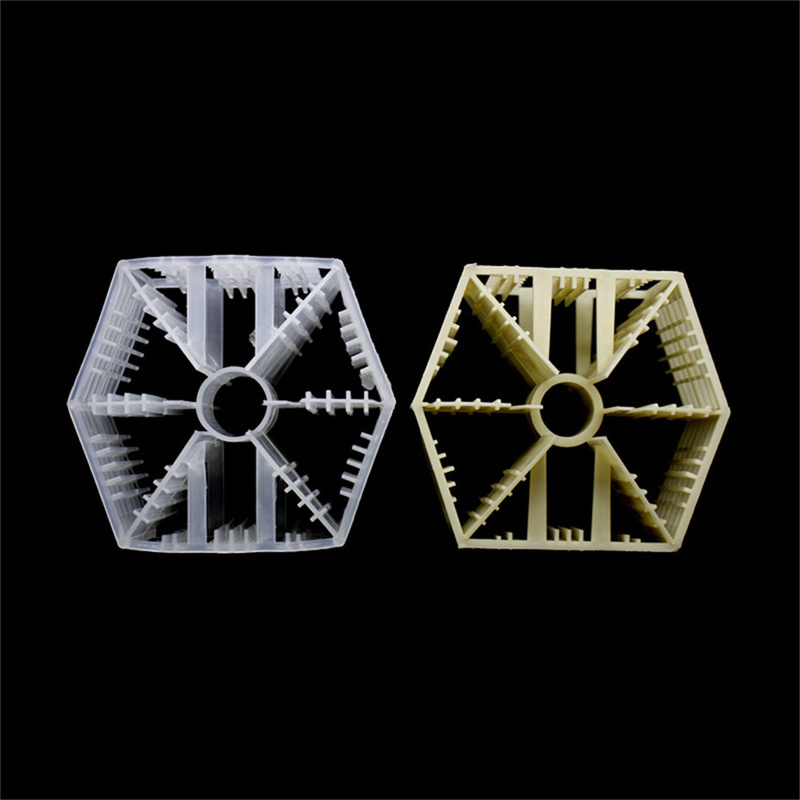

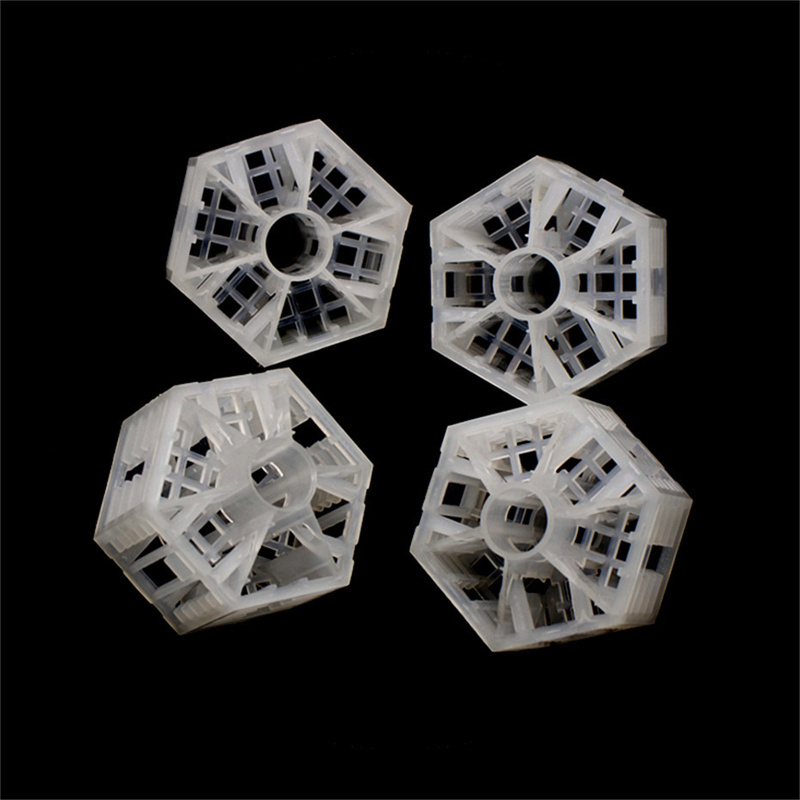

Plastic Lanpack Ring (also known as Hexagonal Ring) is a high-performance injection-moulded random tower packing featuring a unique hexagonal structure. Designed for optimal gas-liquid contact, it delivers superior mass transfer efficiency and stable operation in industrial separation systems.
It delivers key advantages including high void ratio, low pressure drop, and high mass transfer efficiency—along with uniform liquid distribution, excellent anti-fouling performance, and robust mechanical strength, making it ideal for intensive scrubbing, absorption and separation operations.
Constructed from corrosion-resistant, heat-stable plastics (PP, RPP, PVC, CPVC, PVDF), it performs reliably in operating temperatures ranging from -20°C to 150°C (PP: ≤100°C, PVDF: ≤150°C). Compared to traditional Pall rings or Raschig rings, this packing offers larger flux, lower energy consumption, and easier loading/unloading for long-term stable operation.
Widely applied in absorption towers, scrubbers, distillation columns, waste gas treatment systems and water treatment projects, it suits petroleum, chemical, chlor-alkali and environmental protection industries—including acid gas removal, VOC stripping, desulfurization and wastewater treatment processes.
|
Product Name
|
Plastic Lanpack
|
|||||
|
Material
|
PP, PE、PVDF.
|
|||||
|
Size
Inch/mm |
Surface Area
m2/m3 |
Void Volume
% |
Packing Number
pieces/ m3 |
Weight(PP)
|
Dry Packing Factor m-1
|
|
|
3.5”
|
90
|
144
|
92.5
|
1765
|
4.2lb/ft3 67kg/m3
|
46/m
|
|
2.3”
|
60
|
222
|
89
|
7060
|
6.2lb/ft3 99kg/m3
|
69/m
|
