Plastic Polyhedral Hollow Ball

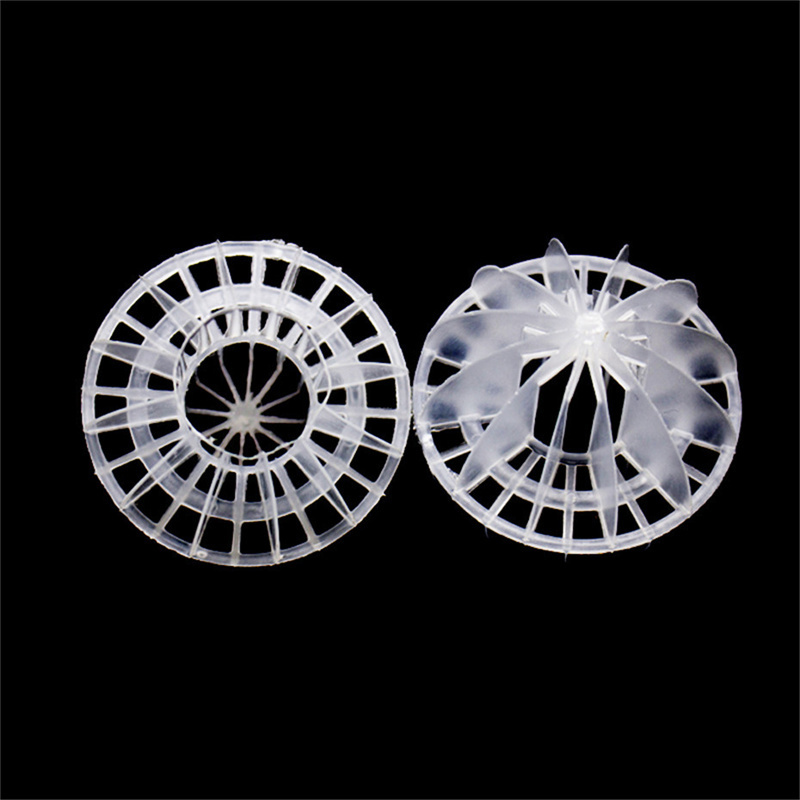

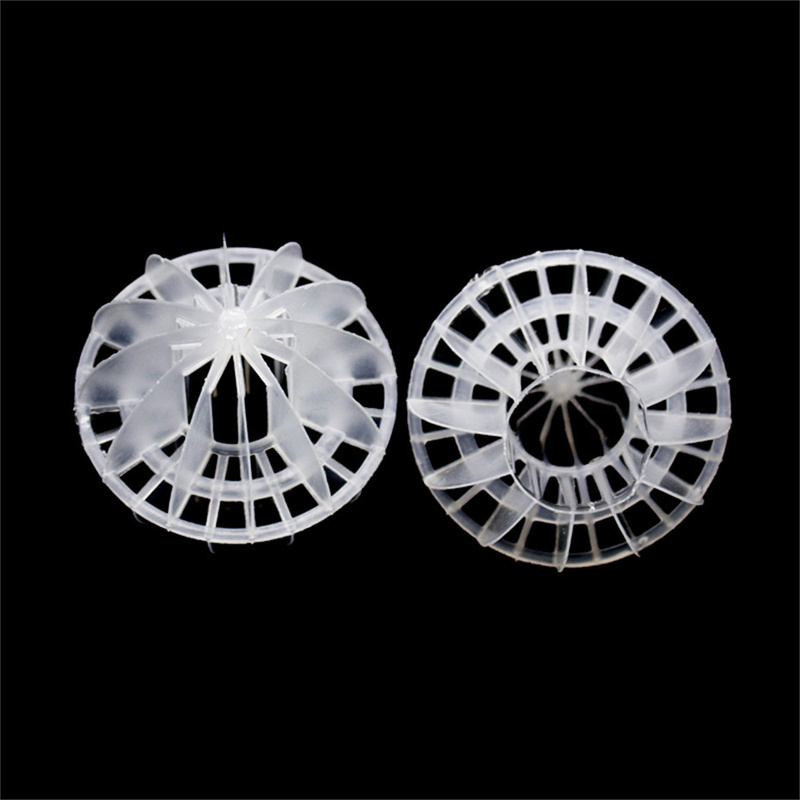

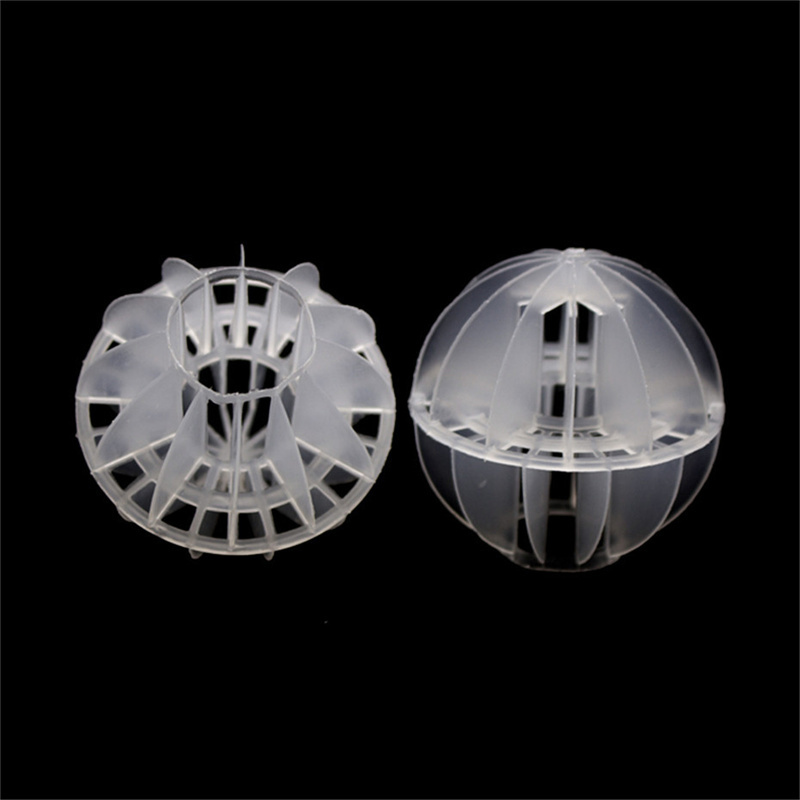

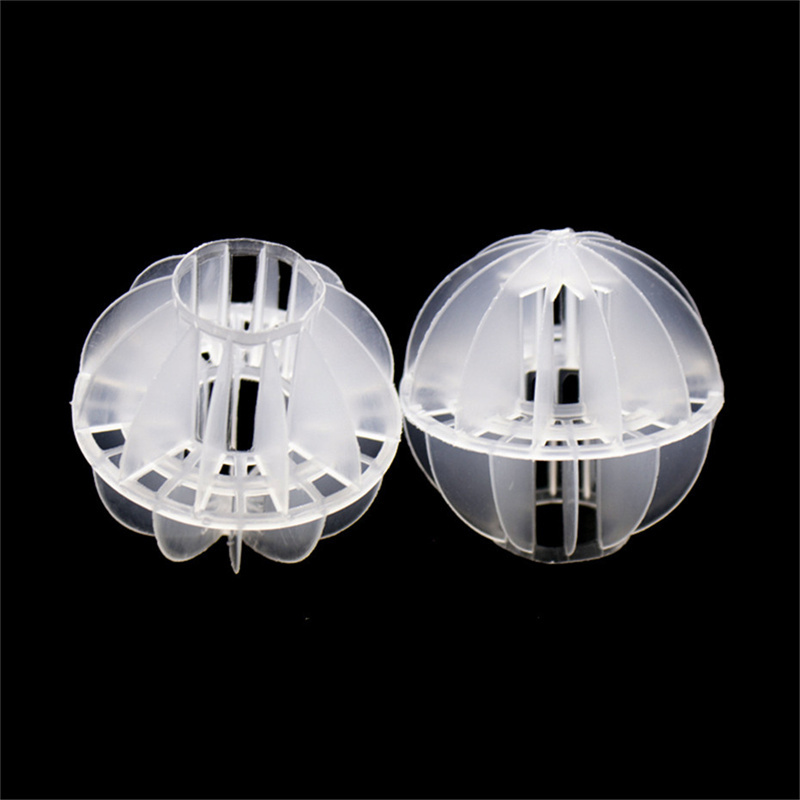

Plastic Polyhedral Hollow Ball is a high-efficiency random tower packing made of two hemispheres with fan-shaped leaves, designed for maximum surface area and voidage. It’s widely used in water treatment, desulfurization, and distillation processes.
Key Specs & Materials
- Sizes: 25mm, 38mm, 50mm, 76mm, 100mm
- Materials:Performance: 90–92% voidage (low pressure drop), up to 460m²/m³ surface area (25mm size)
- PP: 100°C resistant, acid/alkali tolerant, ideal for most water treatment
- PVC: 60°C resistant, for cooling towers & general water treatment
- PVDF: 150°C resistant, highly corrosion-proof for harsh chemical environments
- Also available: PE, CPVC, RPP
Core Benefits for Your Process
- Efficient Mass Transfer: Uniform gas-liquid flow eliminates wall flow/channeling, boosting separation efficiency
- Energy Savings: Hollow open structure reduces fluid resistance, cutting fan/pump power consumption
- Long Service Life: Anti-fouling, hydrophilic, 3+ year lifespan with minimal maintenance
Typical Applications
- Environmental: Sewage treatment, power plant desulfurization, acid mist scrubbing
- Petrochemical: Crude/vacuum distillation, extraction & olefin purification
- Specialized: Seawater desalination, ultrapure water, biofilm carriers
|
Product name
|
Polyhedral hollow ball
|
|||||
|
Material
|
PP, PE, PVC, CPVC, RPP, and etc
|
|||||
|
Life span
|
>3 years
|
|||||
|
Size inch/mm
|
Surface area m2/m3
|
Void volume %
|
Packing number pieces/ m3
|
Packing density Kg/m3
|
Dry packing factor m-1
|
|
|
1”
|
25
|
460
|
90
|
64000
|
64
|
776
|
|
1-1/2”
|
38
|
325
|
91
|
25000
|
72.5
|
494
|
|
2”
|
50
|
237
|
91
|
11500
|
52
|
324
|
|
3”
|
76
|
214
|
92
|
3000
|
75
|
193
|
|
4”
|
100
|
330
|
92
|
1500
|
56
|
155
|
|
Feature
|
High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific
gravity, high efficiency of mass transfer. |
|||||
|
Advantage
|
1. Their special structure make it has big flux, low pressure drop, good anti-impaction capability.
2. Strong resistance to chemical corrosion, large void space. energy saving, low operation cost and easy to be load and unload. |
|||||
