Low Pressure Drop Plastic Raschig Ring (PP/PE/PVC) 38/50/76mm – Corrosion Resistant Industrial Chemical Absorption & Distillation Tower Packing

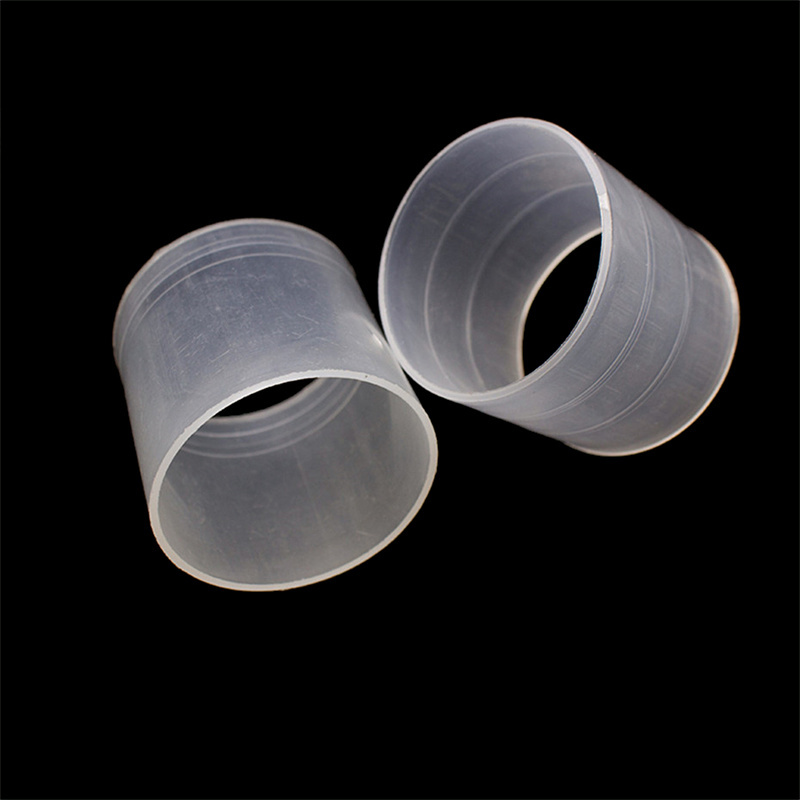

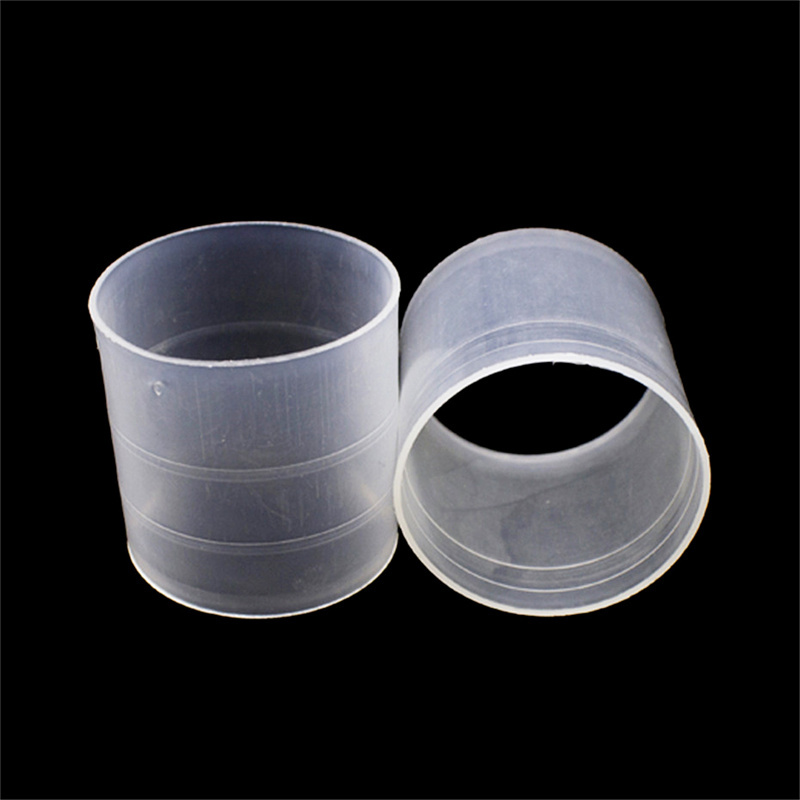

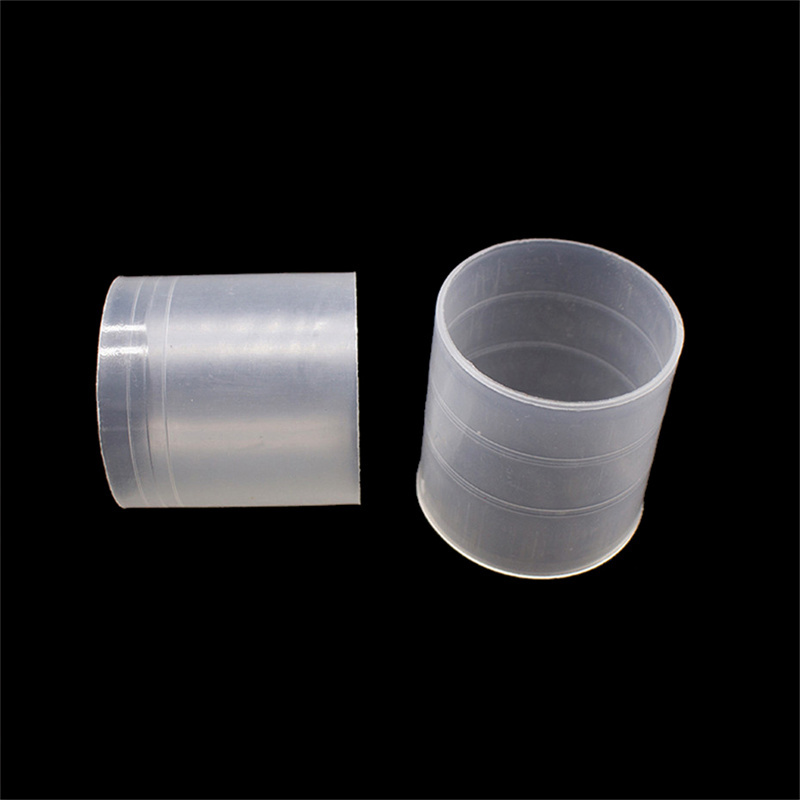

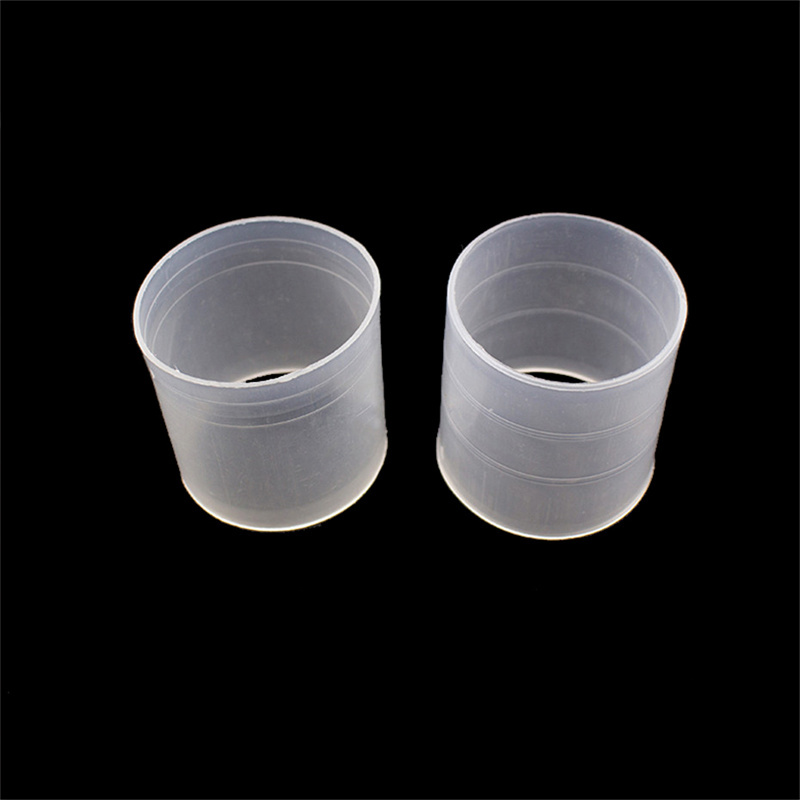

Plastic Raschig Ring Product Description
Plastic Raschig Ring – a classic random tower packing with roots dating back to 1914 (invented by F. Raschig) – stands as one of the earliest-developed ring-type random packings, widely trusted across industrial processing.
Featuring a simple, time-tested design (identical diameter and height), it delivers a large surface area within tower volumes, enabling efficient mass transfer between liquids and gases/vapors while maintaining a low pressure drop. Available in materials including RPP, PVC, PE, and PP, with common sizes (25mm, 38mm) tailored to diverse tower configurations.

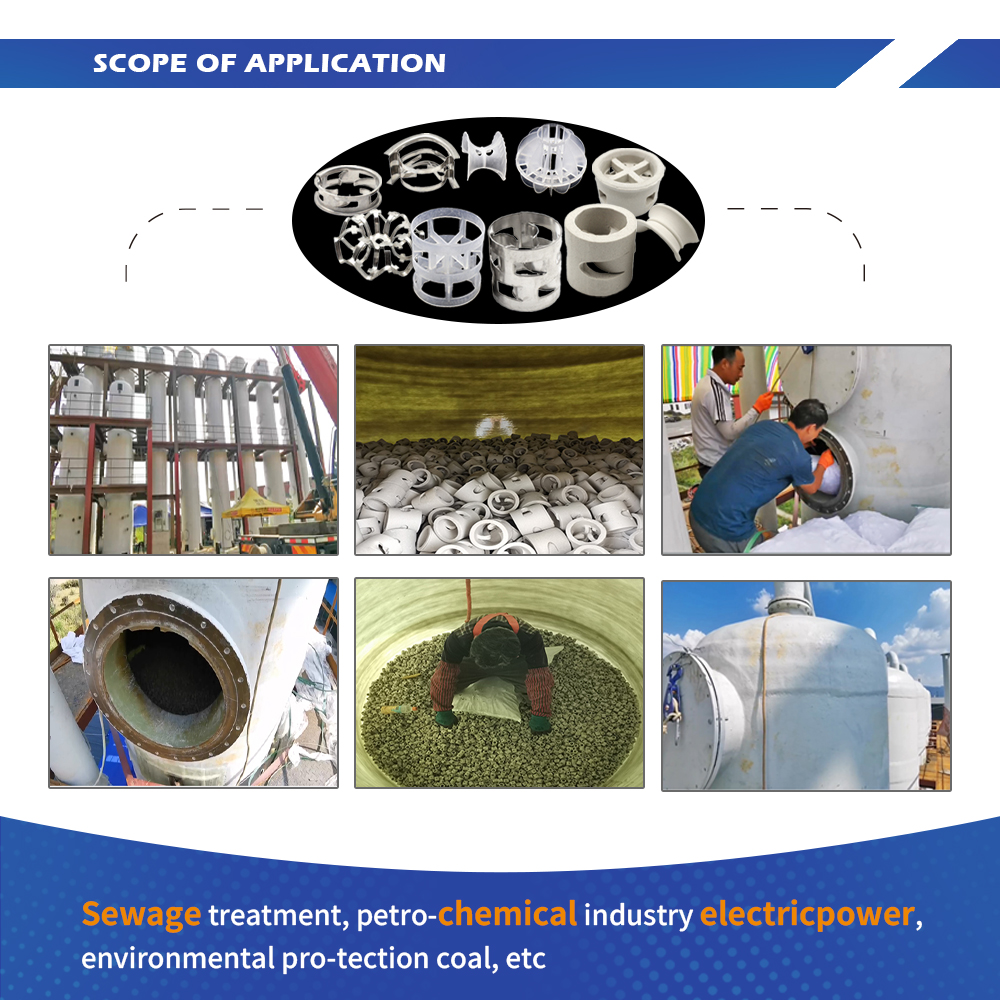

Its bridge-type variant excels at supporting catalyst beds, while standard plastic Raschig Rings are widely applied to equipment like drying towers, absorption towers, washing towers, and regeneration towers – spanning industries such as chemical processing, metallurgy, and gas production.
|
Technical data
|
|||||
|
Item
|
Tehnical Properties
|
||||
|
Plastic
|
Model
|
Size
|
Number per m3
|
Surface area
|
Void Volume
|
|
D×H×δ mm
|
(n/m3)
|
(m2/m3)
|
(%)
|
||
|
Plastic Raschig Ring
|
Φ16
|
16×16×1
|
180000
|
188
|
91.1
|
|
Φ25
|
25×25×1.2
|
49000
|
175
|
90
|
|
|
Φ38
|
38×38×1.4
|
13600
|
155
|
89
|
|
|
Φ50
|
50×50×1.5
|
6500
|
93
|
90
|
|
|
Φ80
|
80×80×2.6
|
1820
|
97
|
92
|
|
|
Application
|
Devices of isolation,absorption,deadsorption,common decompression such as Toluene aeparation ,Ethylbenzene separation,Isooctane
separation and desulfurization System etc. |
||||
|
Maerial
|
polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride
(CPVC) and polyvinylidene fluoride (PVDF). |
||||
